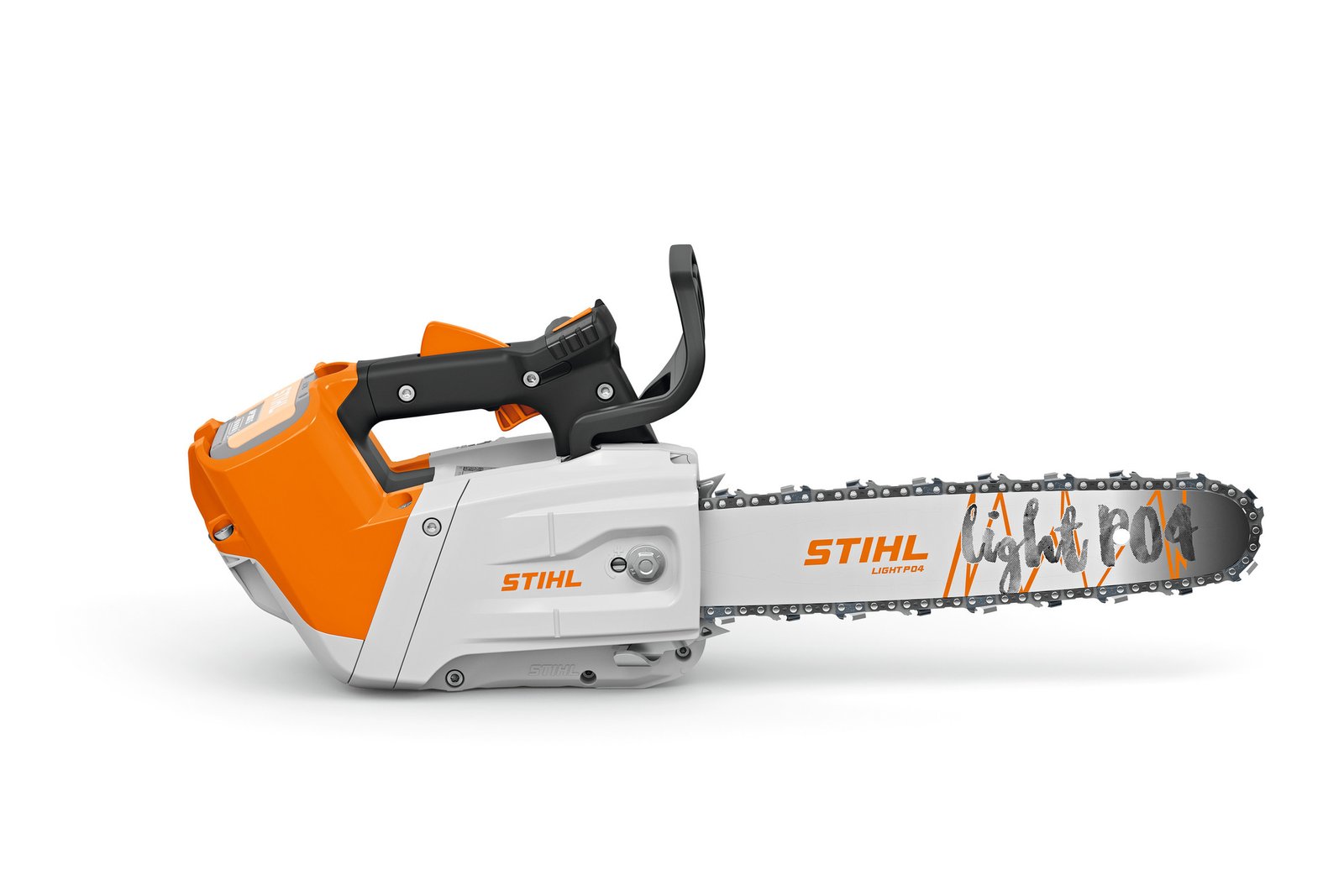

STIHL MSA 220 TC-O Cordless Chainsaw – 35 cm / 14 inch

Powerful professional cordless top-handle chainsaw for noise-sensitive areas

Individual tool without battery, charger or hardcase

For trained arborists

Intuitive operation thanks to electronic control system

LED display on the top handle for information on the operating status of the chainsaw as well as the

Monitor the oil pressure thanks to the oil sensor

MSA 220 TC-O Cordless Chainsaw: Top-handle cordless chainsaw with oil sensor and high-cutting performance for professional use

The MSA 220 TC-O is STIHL’s most powerful cordless top-handle saw to date. This professional arborist saw is ideal for removing pieces of trunk, crown correction, or removing dead wood.

The TC-O model features an oil sensor on an LED display which gives the user a warning when the chain oil level is low. It also has an electronic trigger system with an unlock button for simple saw activation, which leads to easy operation.

LED display on the top handle also shows information on the operating status of the chainsaw as well as the chain brake position.

With an easy-to-clean air filter for long service life and optimum engine cooling, excellent cutting performance, side-mounted chain tensioning, tool-free oil tank cap, captive nut on the sprocket cover.

Must be used with AP 300 S or AP 500 S battery for full performance.

Exterior design of guide bar for MSA 220 T / MSA 220 TC-O are subject to change.

NOTE: For purchase by certified arborists only.

You can find videos showing you how to fill your machine with fuel and oil, fit bars and chains and start your chainsaw here.

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

REMOVABLE BATTERY FOR EASY CLEANING

The battery can be easily removed for cleaning.

FOLD-OUT HOOK

The fold-out hook serves as a carrying rope attachment for lowering the arborist saw and for security. When it is pushed in, the hook doesn’t get in the way of your work or when it’s in storage.

FLEECE FILTER

The fleece filter in our new MSA 300 guarantees consistent performance – even in extreme conditions. Its extraordinarily finepored filter material keeps even very fine dust and dirt away from the power electronics and electric motor. To clean it, remove the fleece filter and spray it with STIHL Varioclean, briefly leaving it to work before rinsing out with warm water and letting the filter dry. Then it is ready to use again.

INTUITIVE CONTROLS AND A BRIGHT LED DISPLAY

The MSA 300 features intuitive controls and a bright LED<br />display. Three speed settings limit the chain speed to 20,<br />24 or 30 m/s, meaning the user can maximise battery life<br />when completing less intensive tasks such as snedding or<br />brashing. Status of the chain brake and temperature warnings<br />are also displayed in red.

SIDE-MOUNTED CHAIN TENSIONING

FOR SIMPLE AND SECURE RE-TENSIONING. Side-mounted chain tensioning allows for protected, easy and quick chain tensioning and replacement. The tensioning screw is inserted laterally through the sprocket cover.

CAPTIVE NUTS

When changing the cutting attachment, you will not risk losing the nuts on the sprocket.

Technical details

Rated voltage	36 V
Power	1.7 kW
Battery system	AP
Recommended battery	AP 300 S
Weight	2.7 kg
Weight	3.18 / 3.25 kg
Bar length	30-35 cm
Bar length	12-14 ”
Saw chain pitch	3/8″P
IPX Rating	IPX4
Battery working time AP 300 S (Power level 1)	up to 29 min 1)
Battery working time AP 500 S (Power level 1)	up to 34 min 2)
Battery working time AR 2000 L (Power level 1)	up to 109 min 3)
Battery working time AR 3000 L (Power level 1)	up to 174 min 3)
Length with bumper strike	315 mm
Sound pressure level	94 dB(A) 4)
Sound power level	104 dB(A) 5)
Vibration levels left/right	3/3.4 m/s² 6)

¹⁾Battery working times are approximate and may vary depending on application²⁾Working times can vary depending on use and application³⁾Working time may vary depending on the application⁴⁾K-Wert nach RL 2006/42/EG = 2,5 dB(A)⁵⁾K-factor according to DIR 2006/42/EC = 2.5 dB (A)⁶⁾K-factor according to DIR 2006/42/EC = 2m / s ²
