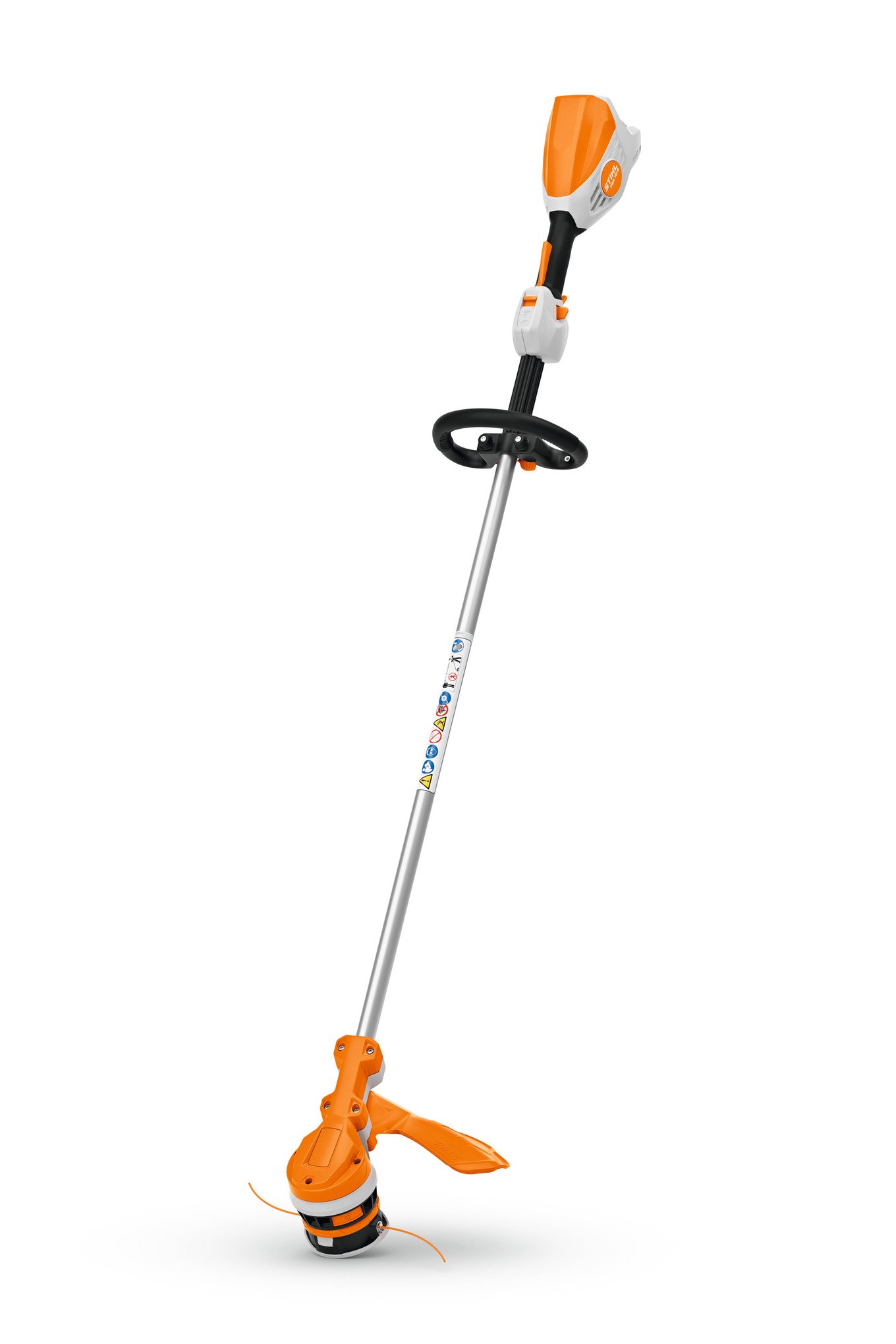

STIHL FSA 70 R Cordless Brushcutter

Powerful cordless brushcutter for homeowners

Individual tool without battery, charger or hardcase

Rapid Click System for quick, tool-free removal of the mowing head

Advanced EasySpool for quick and easy winding of the mowing head

2 power levels with variable speed control

Tool-free adjustable loop handle

FSA 70 R Cordless Brushcutter: powerful brushcutter for home gardens

The STIHL FSA 70 R is a battery-powered brushcutter designed for tackling the toughest mowing, cutting and clearing jobs you may face in your home garden. Part of the AK System of battery tools, this brushcutter has low noise emissions you don’t have to worry about disturbing any neighbours either.

The FSA 70 R is supplied with the AutoCut C 12-2, a mowing head designed exclusively for brushcutters with the STIHL Rapid Click System. It can be fitted to the brushcutter without the need for any additional tools – simply click it in place and you are ready to go! Removing the head is simple too, simply click the side button to remove the mowing head – making rewinding it with mowing line even easier. You can also fit the FSA 70 R with the PolyCut 12-2 mowing head (sold separately), which also clicks in place without the need for tools.

Fitted with a loop handle that has a quick-mounting system, which means you can adjust the handle to your height for an ergonomic working position. This handle also makes mowing on slopes, around trees or on uneven terrains even easier. The FSA 70 R has a powerful brushless EC motor and speed-adjustment on the control handle, which can be set at 2 different speed settings. There is an ECO mode (level 1), for simple tasks such as trimming lawn edges, which results in lower energy consumption for extended battery life. And there is full speed mode (level 2), for mowing thicker grass, which will use more of the battery energy.

On a full charge with the AK 20 battery, the FSA 70 R has a working time of 25 – 45 minutes when used with the AutoCut C 12-2 and 50 – 90 minutes when used with the PolyCut 12-2 mowing head.


Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

RAPID CLICK SYSTEM

MOUNT OR REMOVE THE MOWING HEAD AT THE TOUCH OF A BUTTON. With the Rapid Click System, you can mount or remove the mowing head at the touch of a button. With just a “click”, the mowing head is securely mounted to the tool so you’re ready to work, or removed from the tool if it needs replacing.<br />

ADVANCED EASYSPOOL

WIND THE MOWING HEAD QUICKLY AND EASY. Thanks to the orange disc handle, the mowing head can be wound with mowing line easily, without the need for tools. You can wind it directly on the power tool or after it has been removed – which can be done at the touch of a button thanks to the Rapid Click System.

TOOL-FREE ADJUSTABLE LOOP HANDLE

FLEXIBLE ADJUSTMENT, FLEXIBLE MOWING. The loop handle can be quickly and easily adjusted without any tools so you can adapt the working position to your height. The optimised geometry of the loop handle gives plenty of freedom to manoeuvre and precise guidance of your power tool in different mowing situations.<br />

POWER LEVELS

PERFORMANCE SUITABLE FOR THE TASK. You can set 2 different power levels on the handle. Level 1, is Eco mode, which has reduced power to extend the battery life. Level 2 allows you to use the full power of the tool.

SINGLE-HANDED MULTI-FUNCTION HANDLE WITH SPEED CON

EASY ADJUSTMENT OF tool PERFORMANCE. Quickly and conveniently adjust the speed of your tool to the respective work situation. Doing so reduces energy consumption at low speeds, and in this way extends the battery runtime. The practical control handle with speed control allows you to make the relevant adjustment without having to change your grip or pause work.

STIHL ANTI-VIBRATION SYSTEM

FOR MORE PLEASANT WORK. Vibrations can occur when you put your tools through their paces, and these are particularly noticeable in the grip area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of engine vibrations to the handle area and therefore to your body. The result is that your tool is more comfortable to hold and your work is much less tiring.

HANGING EYELET

FOR SAFE STORAGE. The tool has an eyelet&nbsp; allowing you to store your tool safely and compactly.

TOOL MONITORING WITH THE SMART CONNECTOR

INTEGRATION INTO STIHL CONNECTED. The tool is compatible with the Smart Connector, meaning it can be integrated into the STIHL connected system. Once you have attached a Smart Connector to the tool, after one-time commissioning it will record the tool’s operating hours and transmit them to the STIHL connected App via Bluetooth. In addition to displaying the operational time, the app also provides an overview of all necessary maintenance, ensuring that you do not overlook important upkeep and that your tool is always in a ready-to-use condition.

Technical details

Rated voltage	36 V
Power	0.8 kW
Battery system	AK
Recommended battery	AK 20
Weight	2.7 kg
Cutting circle diameter	381 mm
Standard cutting attachment	AutoCut C 12-2
IPX Rating	N/A
Battery working time AK 20 (Power level 1)	up to 45 min 1)
Battery working time AK 20 (Power level 2)	25 min 2)
Overall length	166 cm 3)
Sound pressure level	76 dB(A) 4)
Sound power level	91 dB(A) 4)
Vibration level, left	4.9 m/s² 5)
Vibration level, left	3.8 m/s²
Vibration level, right	2 m/s²

¹⁾With GrassCut blade. Working times are approximate and may vary depending on application²⁾With AutoCut mowing head. Working times are approximate and may vary depending on application³⁾Without cutting attachment⁴⁾K-factor according to DIR 2006/42/EC = 2.5 dB (A)⁵⁾K-factor according to DIR 2006/42/EC = 2m / s ²
